The Dual Function Burn-in System for High Power Devices

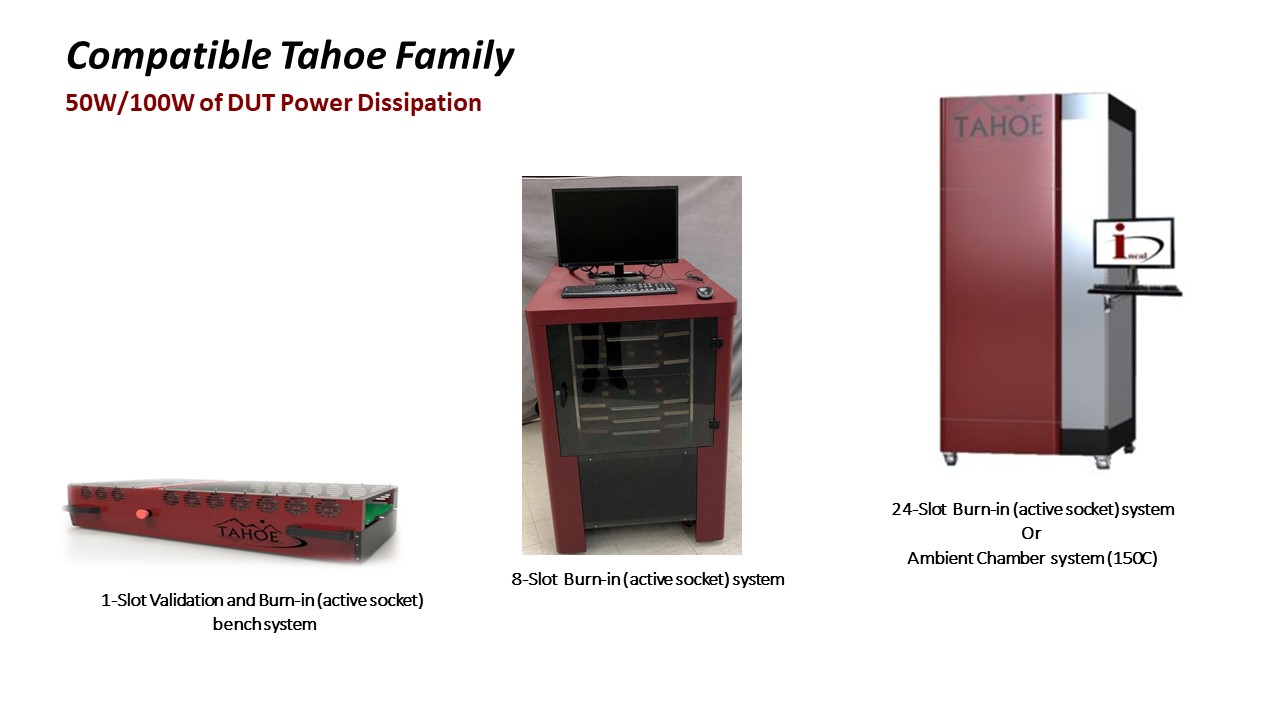

The Tahoe Burn-in Test System is Incal’s line of Burn-in Test Equipment for devices dissipation up to 100Watts. It is a multi-use, multi-application system for burn-in testing of high power and low power devices, digital or mixed signal.



FEATURES:

Dual functionality Chamber- operates as;
– 24 slot single Temp Zone (25C to 170C)
– 24 slot Individual active socket control
Two style system configuration
– HP 50W/100W DUT dissipation Integrated refrigerant 25C
– LP 20Watt DUT dissipation cooled ambient chamber air
Independent driver board resources per BIB slot (non-share)
True 160 Bidirectional I/O channels per slot
Hot swap Driver boards increase system uptime
Chamber Heating or Individual DUT Temp.

12kW Chamber Heat Dissipation

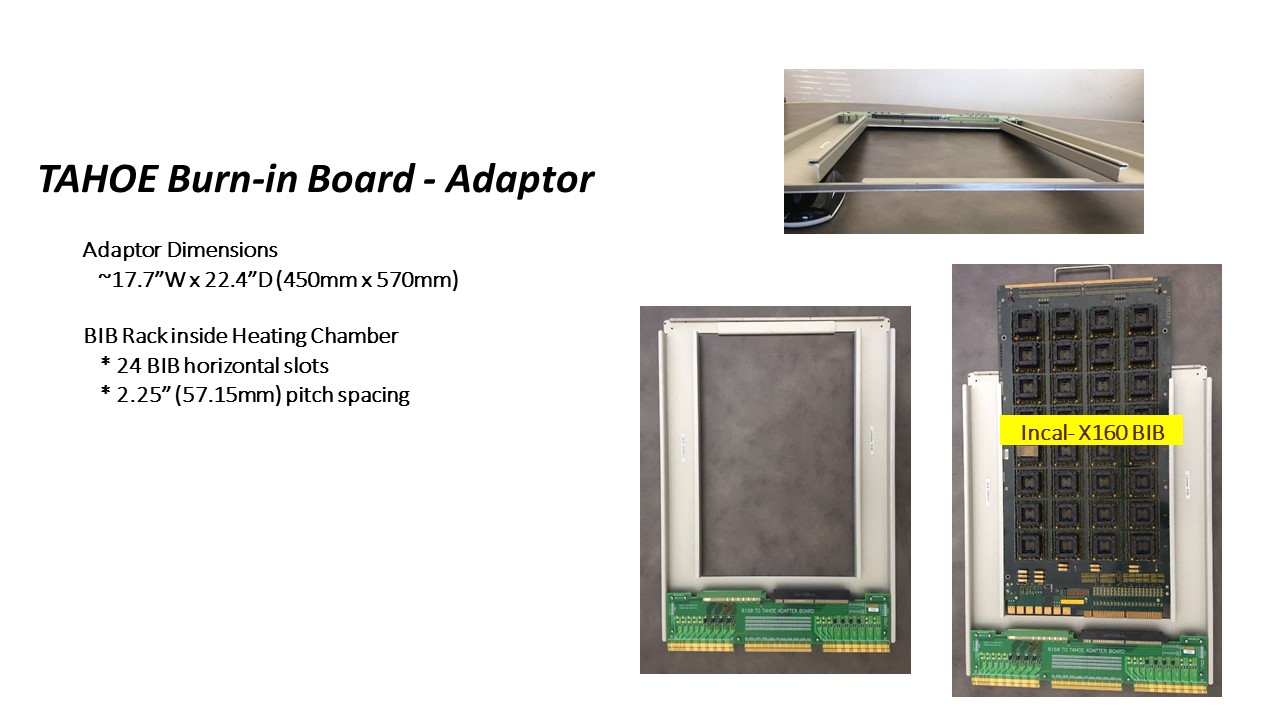

1:1 BIB-to-Driver configuration 24 Independent BIB slots

Each BIB slot has:

  • 12 x 54A and 4 x 12A power supplies
  • 160 bidirectional channels
  • 4 Analog channels
  • 2 LVDS channels
  • Tristate per pin
  • Measure DUT voltage and current
  • Monitor DUT outputs or sign of life
